IN-DEPTH: CODEX + GeoMx Tutorial
from pathlib import Path
import cv2
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import tifffile
from matplotlib.collections import PatchCollection
from matplotlib.patches import Rectangle
from skimage.segmentation import find_boundaries
from tqdm import tqdm
TQDM_FORMAT = "{desc}: {percentage:3.0f}%|{bar:30}| {n_fmt}/{total_fmt} [{elapsed}<{remaining}, {rate_fmt}]"
def uint16_to_uint8(image, quantile_min=0.1, quantile_max=99.9):
"""
Convert a uint16 image to uint8 using specified quantiles for scaling.
"""
if image.dtype == np.uint16:
v_min, v_max = np.percentile(image, [quantile_min, quantile_max])
image = (image - v_min) / (v_max - v_min) * 255
image = np.clip(image, 0, 255)
image = image.astype("uint8")
return image
def ax_plot_core_positions(
core_positions_df,
x_min="x1",
x_max="x2",
y_min="y1",
y_max="y2",
core_id="core",
step=1,
text_size=10,
text_color="red",
rect_edgecolors="r",
rect_linewidth=1,
rect_facecolors="none",
ax=None,
):
"""
Plot core rectangles and text labels on ax.
Parameters:
core_positions_df: DataFrame with core positions
x_min, x_max, y_min, y_max: column names for rectangle coordinates
core_id: column name for core label
step: downsampling factor
text_size: font size for text
text_color: color for text
rect_edgecolors: edge color for rectangles
rect_linewidth: line width for rectangles
rect_facecolors: face color for rectangles
ax: matplotlib axis
"""
if ax is None:
ax = plt.gca()
patch_list = []
for _, row in core_positions_df.iterrows():
rect = Rectangle(
(row[x_min] // step, row[y_min] // step),
(row[x_max] - row[x_min]) // step,
(row[y_max] - row[y_min]) // step,
)
patch_list.append(rect)
ax.text(
(row[x_min] + row[x_max]) // 2 // step,
(row[y_min] + row[y_max]) // 2 // step,
str(row[core_id]),
color=text_color,
ha="center",
va="center",
fontsize=text_size,
)
patch_collection = PatchCollection(
patch_list,
linewidths=rect_linewidth,
edgecolors=rect_edgecolors,
facecolors=rect_facecolors,
)
ax.add_collection(patch_collection)
def segmentation_mask_to_phenotype_map(
segmentation_mask,
annotation_df,
):
"""
Convert segmentation mask to RGB image using annotation_df['color'].
segmentation_mask: 2D numpy array of cell labels
annotation_df: DataFrame with columns 'cell_label', 'annotation', 'color'
Returns: RGB image (height, width, 3)
"""
mask = np.isin(segmentation_mask, annotation_df["cell_label"].values)
segmentation_mask = segmentation_mask.copy()
segmentation_mask[~mask] = 0
segmentation_mask_label = np.zeros_like(segmentation_mask)
# cell boundary
boundaries = find_boundaries(
segmentation_mask, mode="inner", connectivity=1, background=0
)
labels = annotation_df[
annotation_df["cell_label"].isin(np.unique(segmentation_mask))
]["annotation"].unique()
label_ids = np.arange(1, len(labels) + 1).tolist()
annotation_dict = dict(zip(labels, label_ids))
color_dict = dict(zip(annotation_df["annotation"], annotation_df["color"]))
height, width = segmentation_mask.shape
if len(label_ids) == 0:
return np.zeros((height, width, 3), dtype=np.uint8), color_dict
else:
color_mapping = np.zeros((np.max(label_ids) + 1, 3), dtype=np.uint8)
for annotation in labels:
color_code = color_dict[annotation]
rgb_color = tuple(int(color_code[i : i + 2], 16) for i in (1, 3, 5))
color_mapping[annotation_dict[annotation]] = rgb_color
mask = np.isin(
segmentation_mask,
annotation_df[annotation_df["annotation"] == annotation]["cell_label"],
)
segmentation_mask_label[mask] = annotation_dict[annotation]
colored_mask = color_mapping[segmentation_mask_label]
colored_mask[segmentation_mask_label == 0] = (0, 0, 0)
colored_mask[boundaries] = (255, 255, 255)
return colored_mask, color_dict
def ax_plot_segmentation_mask(
segmentation_mask, annotation_df, title=None, ax=None, legend=False
):
"""
Plot a segmentation mask with legend using annotation_df['color'].
"""
if ax is None:
ax = plt.gca()
img, color_dict = segmentation_mask_to_phenotype_map(
segmentation_mask, annotation_df
)
ax.imshow(img)
if title:
ax.set_title(title)
ax.axis("off")
if legend:
annotation_df = annotation_df[
annotation_df["cell_label"].isin(np.unique(segmentation_mask))
]
handles = [
plt.Line2D(
[0],
[0],
marker="s",
color="black",
label=label,
markersize=10,
markerfacecolor=color_dict[label],
linestyle="None",
)
for label in color_dict.keys()
]
ax.legend(
handles=handles,
loc="center left",
bbox_to_anchor=(1.05, 0.5),
fontsize=10,
)
def ax_plot_legend(color_dcit, ax=None):
if ax is None:
ax = plt.gca()
handles = [
plt.Line2D(
[0],
[0],
marker="s",
color="black",
label=label,
markersize=10,
markerfacecolor=color_dcit[label],
linestyle="None",
)
for label in color_dcit.keys()
]
ax.legend(
handles=handles,
loc="center left",
bbox_to_anchor=(1.05, 0.5),
fontsize=10,
)
1. Data Preparation
input_dir = Path("/mnt/nfs/storage/wenruiwu_temp/indepth/tutorial/input")
output_dir = Path("/mnt/nfs/storage/wenruiwu_temp/indepth/tutorial/output")
1-1. GeoMx Data
1-1-1. GeoMx DAPI image (slide)
# Load GeoMx DAPI image
geomx_dapi_f = input_dir / "geomx_dapi.tiff"
geomx_dapi = tifffile.imread(geomx_dapi_f)
print(f"GeoMx DAPI loaded: shape = {geomx_dapi.shape}, dtype = {geomx_dapi.dtype}")
GeoMx DAPI loaded: shape = (49152, 49152), dtype = uint16
Image of uint16 is not supported for the SIFT alignment. So we need to convert the image of uint16 to uint8.
# geomx_dapi = uint16_to_uint8(geomx_dapi)
# print(f"GeoMx DAPI converted to {geomx_dapi.dtype}")
# tifffile.imwrite(input_dir / "geomx_dapi_uint8.tiff", geomx_dapi)
geomx_dapi_uint8_f = input_dir / "geomx_dapi_uint8.tiff"
geomx_dapi = tifffile.imread(geomx_dapi_uint8_f)
print(f"GeoMx DAPI loaded: shape = {geomx_dapi.shape}, dtype = {geomx_dapi.dtype}")
GeoMx DAPI loaded: shape = (49152, 49152), dtype = uint8

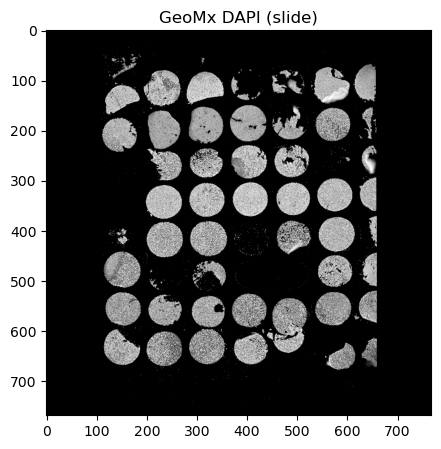

# Visualize GeoMx DAPI image
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
ax.imshow(np.log1p(geomx_dapi[::64, ::64]), cmap="gray")
ax.set_title("GeoMx DAPI (slide)");
1-1-2. GeoMx core position
# Load GeoMx core position
geomx_core_positions_f = Path(input_dir / "geomx_core_positions.csv")
geomx_core_positions = pd.read_csv(geomx_core_positions_f)
print(geomx_core_positions.head())
core x1 x2 y1 y2
0 1.1 39984 42365 38483 43136
1 1.2 34015 39984 38483 43600
2 2.1 28750 34015 39123 41520
3 2.2 23280 28750 38235 43032
4 3.1 17745 23280 38235 43032

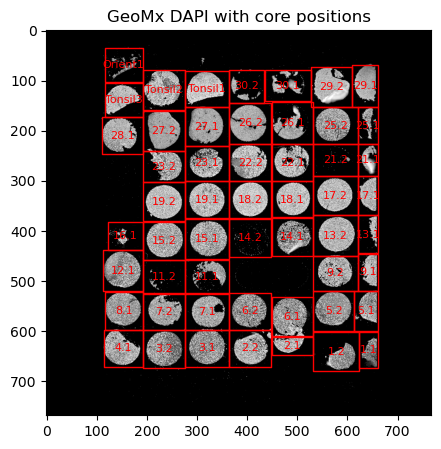

# Visualize core positions on images
step = 64
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
ax.imshow(np.log1p(geomx_dapi[::step, ::step]), cmap="gray")
ax_plot_core_positions(geomx_core_positions, step=step, text_size=8)
ax.set_title("GeoMx DAPI with core positions");
1-1-3. GeoMx ROI position
For the GeoMx platform, we can export the DAPI images of each ROI we selected and have the positions of each ROI relative to the whole slide. However, the unit of the positions is um. We need to convert it to pixel.
# geomx_dapi_roi_f = input_dir / "geomx_dapi_roi.tiff"
# geomx_dapi_roi = tifffile.imread(geomx_dapi_roi_f)
# print(
# f"GeoMx DAPI ROI loaded: shape = {geomx_dapi_roi.shape}, dtype = {geomx_dapi_roi.dtype}"
# )
# GeoMx ROI size in pixel
geomx_roi_width_px, geomx_roi_height_px = 1659, 1970
# GeoMx ROI size and position in um
geomx_roi_width_um, geomx_roi_height_um = 660, 785
roi_position_um = [
["1b", 15296.2, 16463.3],
["11a", 8536.1, 12135.1],
["12a", 4300.4, 11992],
["13b", 14962.4, 10338.6],
["14a", 13023.2, 10536.9],
["15b", 6221.7, 10962.5],
["17a", 16419, 7985.6],
["18b", 10138.5, 8467.4],
["19b", 6201.4, 8687.7],
["2b", 10330.6, 16493],
["21a", 16425.2, 5819.1],
["22b", 10217.9, 6252.2],
["23b", 6418.3, 6883.7],
["3b", 5629.8, 16416.3],
["4a", 3400, 15920.9],
["6a", 12041.9, 14326.6],
["7a", 7929.7, 14268.7],
["8a", 3496.3, 14047.4],
["9a", 16474.1, 12653.3],
["Tonsil1", 8429.2, 2839.2],
]
geomx_roi_positions = pd.DataFrame(
roi_position_um, columns=["roi", "x_cent_um", "y_cent_um"]
)
# GeoMx microns per pixel
geomx_mpp_x = geomx_roi_width_um / geomx_roi_width_px
geomx_mpp_y = geomx_roi_height_um / geomx_roi_height_px
geomx_roi_positions["x_cent_px"] = geomx_roi_positions["x_cent_um"] / geomx_mpp_x
geomx_roi_positions["y_cent_px"] = geomx_roi_positions["y_cent_um"] / geomx_mpp_y
geomx_roi_positions["x_min_px"] = (
geomx_roi_positions["x_cent_px"] - geomx_roi_width_px / 2
)
geomx_roi_positions["x_max_px"] = (
geomx_roi_positions["x_cent_px"] + geomx_roi_width_px / 2
)
geomx_roi_positions["y_min_px"] = (
geomx_roi_positions["y_cent_px"] - geomx_roi_height_px / 2
)
geomx_roi_positions["y_max_px"] = (
geomx_roi_positions["y_cent_px"] + geomx_roi_height_px / 2
)
geomx_roi_positions[["x_min_px", "y_min_px", "x_max_px", "y_max_px"]] = (
geomx_roi_positions[["x_min_px", "y_min_px", "x_max_px", "y_max_px"]]
.round()
.astype(int)
)
print(geomx_roi_positions.head())
roi x_cent_um y_cent_um x_cent_px y_cent_px x_min_px x_max_px \
0 1b 15296.2 16463.3 38449.084545 41315.542675 37620 39279
1 11a 8536.1 12135.1 21456.651364 30453.690446 20627 22286
2 12a 4300.4 11992.0 10809.641818 30094.573248 9980 11639
3 13b 14962.4 10338.6 37610.032727 25945.276433 36781 38440
4 14a 13023.2 10536.9 32735.589091 26442.921019 31906 33565
y_min_px y_max_px
0 40331 42301
1 29469 31439
2 29110 31080
3 24960 26930
4 25458 27428

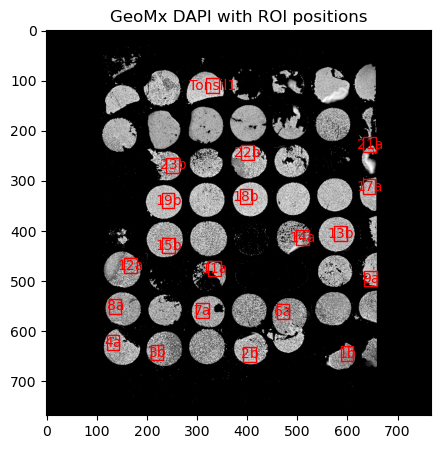

# Visualize GeoMx ROI positions on DAPI image
step = 64
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
ax.imshow(np.log1p(geomx_dapi[::step, ::step]), cmap="gray")
ax_plot_core_positions(
geomx_roi_positions,
x_min="x_min_px",
x_max="x_max_px",
y_min="y_min_px",
y_max="y_max_px",
core_id="roi",
step=step,
)
ax.set_title("GeoMx DAPI with ROI positions");
1-2. CODEX data
1-2-1. CODEX DAPI image (slide)
# Load CODEX DAPI image
codex_dapi_f = input_dir / "codex_dapi.tiff"
codex_dapi = tifffile.imread(codex_dapi_f)
print(f"CODEX DAPI loaded: shape = {codex_dapi.shape}, dtype = {codex_dapi.dtype}")
CODEX DAPI loaded: shape = (34560, 34560), dtype = uint8

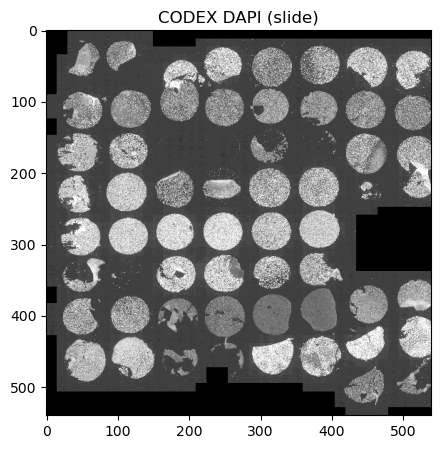

# Visualize CODEX DAPI image
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
ax.imshow(np.log1p(codex_dapi[::64, ::64]), cmap="gray")
ax.set_title("CODEX DAPI (slide)");
1-2-2. CODEX segmentation mask
An array with a same shape of CODEX DAPI image. The value of each pixel represents cell label.
# Load CODEX segmentation mask
codex_seg_f = input_dir / "codex_segmentation_mask.tiff"
codex_seg = tifffile.imread(codex_seg_f)
print(
f"CODEX segmentation mask loaded: shape = {codex_seg.shape}, dtype = {codex_seg.dtype}"
)
CODEX segmentation mask loaded: shape = (34560, 34560), dtype = uint64

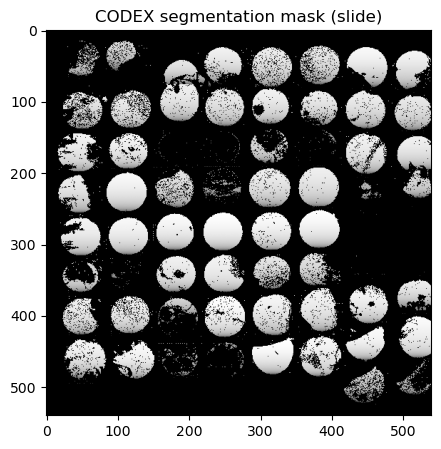

# Visualize segmentation mask
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
ax.imshow(np.log1p(codex_seg[::64, ::64]), cmap="gray")
ax.set_title("CODEX segmentation mask (slide)");

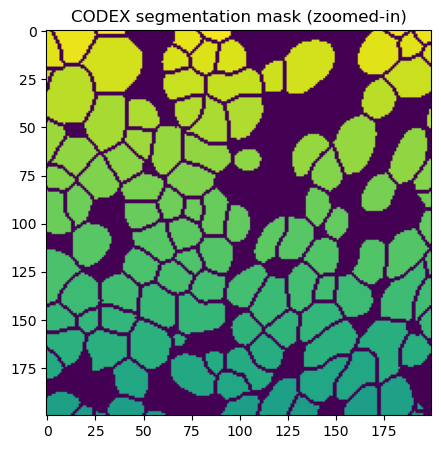

# Visualize segmentation mask (zoomed-in)
codex_seg_sm = codex_seg[3500:3700, 3500:3700].copy()
boundaries = find_boundaries(codex_seg_sm, mode="inner", connectivity=1, background=0)
codex_seg_sm[boundaries] = 0
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
ax.imshow(codex_seg_sm)
ax.set_title("CODEX segmentation mask (zoomed-in)");
1-2-3. CODEX core position
# Load CODEX core position
codex_core_positions_f = Path(input_dir / "codex_core_positions.csv")
codex_core_positions = pd.read_csv(codex_core_positions_f)
print(codex_core_positions.head())
core x1 x2 y1 y2
0 1.1 1850 5118 762 4921
1 1.2 5118 9241 848 4585
2 2.1 9241 13594 2469 4828
3 2.2 13594 17998 1315 5031
4 3.1 17998 22498 1357 5175

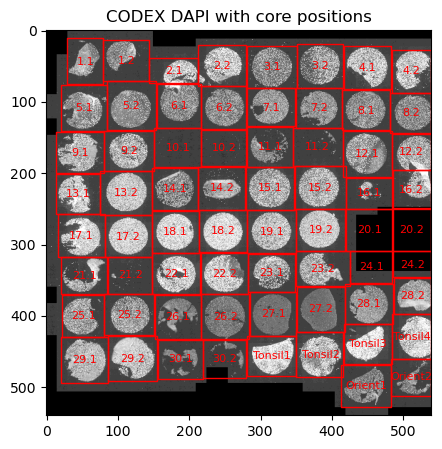

# Visualize core positions on images
step = 64
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
ax.imshow(np.log1p(codex_dapi[::step, ::step]), cmap="gray")
ax_plot_core_positions(codex_core_positions, step=step, text_size=8)
ax.set_title("CODEX DAPI with core positions");
1-2-4. CODEX annotation
codex_annotation_f = input_dir / "codex_annotation.csv"
codex_annotation = pd.read_csv(codex_annotation_f, converters={"core": str})
print(codex_annotation.head())
cell_label annotation core
0 32 CD8mem 11.1
1 582 CD8mem 11.1
2 1376 CD8mem 11.1
3 1866 CD8mem 11.1
4 2150 CD8mem 11.1
2. SIFT Alignment (take core 2.2 as example)
core = "2.2"
output_dir_core = output_dir / "registration" / core
output_dir_core.mkdir(parents=True, exist_ok=True)
# GeoMx core DAPI
geomx_core_position = geomx_core_positions[geomx_core_positions["core"] == core].iloc[0]
geomx_dapi_core = geomx_dapi[
geomx_core_position["y1"] : geomx_core_position["y2"],
geomx_core_position["x1"] : geomx_core_position["x2"],
]
# CODEX core DAPI
codex_core_position = codex_core_positions[codex_core_positions["core"] == core].iloc[0]
codex_dapi_core = codex_dapi[
codex_core_position["y1"] : codex_core_position["y2"],
codex_core_position["x1"] : codex_core_position["x2"],
]
# CODEX core segmentation mask
codex_seg_core = codex_seg[
codex_core_position["y1"] : codex_core_position["y2"],
codex_core_position["x1"] : codex_core_position["x2"],
]

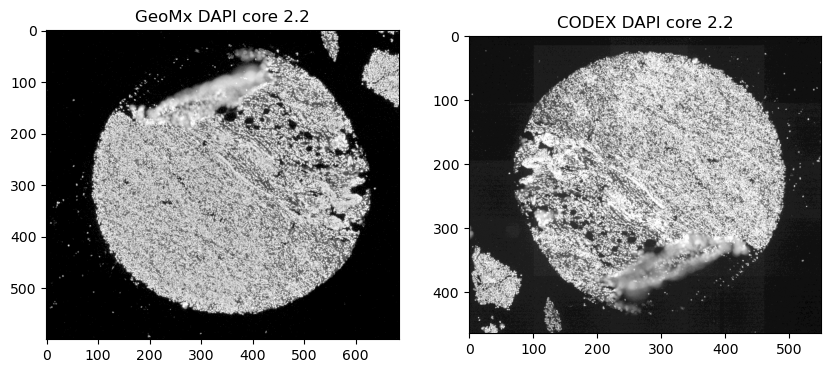

# Visualize core DAPI images
step = 8
fig, axes = plt.subplots(1, 2, figsize=(10, 5))
axes[0].imshow(np.log1p(geomx_dapi_core[::step, ::step]), cmap="gray")
axes[0].set_title(f"GeoMx DAPI core {core}")
axes[1].imshow(np.log1p(codex_dapi_core[::step, ::step]), cmap="gray")
axes[1].set_title(f"CODEX DAPI core {core}");
# SIFT registration (CODEX to GeoMx)
# Initialize SIFT detector
sift = cv2.SIFT_create(nfeatures=10000)
# Find keypoints and descriptors
kp1, des1 = sift.detectAndCompute(codex_dapi_core, None)
kp2, des2 = sift.detectAndCompute(geomx_dapi_core, None)
# Initialize matcher
matcher = cv2.BFMatcher()
# Match descriptors
matches = matcher.knnMatch(des1, des2, k=2)
# Apply ratio test
good_matches = []
for m, n in matches:
if m.distance < 0.5 * n.distance:
good_matches.append(m)
# Extract matched keypoints
src_pts = np.float32([kp1[m.queryIdx].pt for m in good_matches]).reshape(-1, 1, 2)
dst_pts = np.float32([kp2[m.trainIdx].pt for m in good_matches]).reshape(-1, 1, 2)
# Compute affine transformation
affine_matrix = cv2.estimateAffinePartial2D(src_pts, dst_pts)[0]
affine_matrix_inverse = np.linalg.pinv(affine_matrix)
print("Finished feature detection and feature matching.")
Finished feature detection and feature matching.

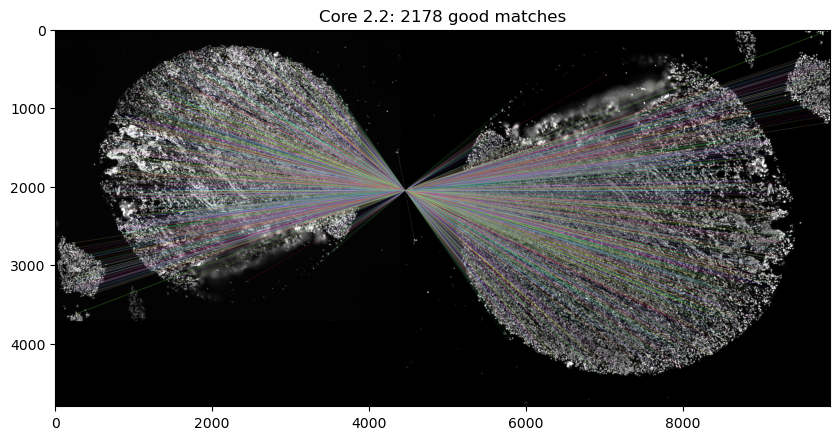

# Visualize matches
match_img = cv2.drawMatches(
codex_dapi_core,
kp1,
geomx_dapi_core,
kp2,
good_matches,
None,
flags=cv2.DrawMatchesFlags_NOT_DRAW_SINGLE_POINTS,
)
fig, ax = plt.subplots(1, 1, figsize=(10, 5))
ax.imshow(match_img)
ax.set_title(f"Core {core}: {len(good_matches)} good matches");
# Save the affine transformation matrix
np.savetxt(output_dir_core / "affine_matrix.txt", affine_matrix)
np.savetxt(output_dir_core / "inverse_affine_matrix.txt", affine_matrix_inverse)
print("Finished writing transformation matrices.")
Finished writing transformation matrices.
3. Warping CODEX data to GeoMx space
To warp segmentation mask and annotation generated from CODEX to GeoMx coordinates. So that we can generate cell-type specific mask for GeoMx.
src_height, src_width = codex_dapi_core.shape
dst_height, dst_width = geomx_dapi_core.shape
# Convert fusion to geomx coordinate system with affine matrix
codex_dapi_core_warp = cv2.warpAffine(
codex_dapi_core,
affine_matrix,
(geomx_dapi_core.shape[1], geomx_dapi_core.shape[0]),
flags=cv2.INTER_LINEAR,
borderMode=cv2.BORDER_CONSTANT,
borderValue=0,
)
codex_seg_core_warp = cv2.warpAffine(
codex_seg_core.astype(np.float64),
affine_matrix,
(geomx_dapi_core.shape[1], geomx_dapi_core.shape[0]),
flags=cv2.INTER_NEAREST,
borderMode=cv2.BORDER_CONSTANT,
borderValue=0,
).astype(codex_seg_core.dtype)

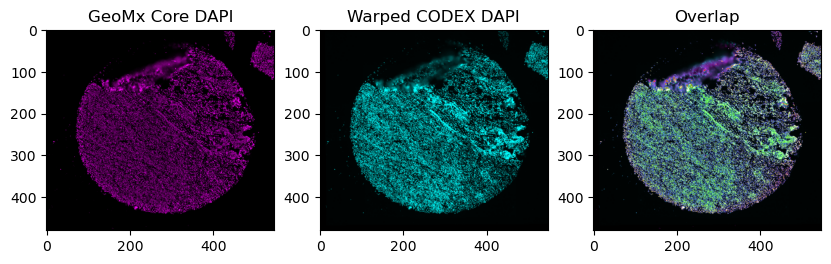

# Visualize warped CODEX DAPI
step = 10
geomx_color = (255, 0, 255) # Magenta
codex_color = (0, 255, 255) # Cyan
fig, axes = plt.subplots(1, 3, figsize=(10, 10))
# Plot GeoMx DAPI
ax = axes[0]
rgb_geomx_core = (geomx_dapi_core - np.min(geomx_dapi_core)) / (
np.max(geomx_dapi_core) - np.min(geomx_dapi_core)
)
rgb_geomx_core = np.stack([rgb_geomx_core] * 3, axis=-1)
rgb_geomx_core = (rgb_geomx_core * geomx_color).astype(np.uint8)
ax.imshow(rgb_geomx_core[::step, ::step])
ax.set_title("GeoMx Core DAPI")
# Plot warped CODEX DAPI
ax = axes[1]
rgb_codex_core_warp = (codex_dapi_core_warp - np.min(codex_dapi_core_warp)) / (
np.max(codex_dapi_core_warp) - np.min(codex_dapi_core_warp)
)
rgb_codex_core_warp = np.stack([rgb_codex_core_warp] * 3, axis=-1)
rgb_codex_core_warp = (rgb_codex_core_warp * codex_color).astype(np.uint8)
ax.imshow(rgb_codex_core_warp[::step, ::step])
ax.set_title("Warped CODEX DAPI")
# Plot overlap
ax = axes[2]
rgb_overlap = rgb_geomx_core + rgb_codex_core_warp
rgb_overlap = np.clip(rgb_overlap, 0, 255)
ax.imshow(rgb_overlap[::step, ::step])
ax.set_title("Overlap")
plt.show()
# Save aligned CODEX DAPI and segmentation mask
output_f = output_dir_core / "warped_codex_dapi.tiff"
tifffile.imwrite(output_f, codex_dapi_core_warp)
output_f = output_dir_core / "warped_codex_segmentation_mask.tiff"
tifffile.imwrite(output_f, codex_seg_core_warp)
4. ROI segmentation and annotation mask
# Search ROIs within the core
geomx_core_position = geomx_core_positions[geomx_core_positions["core"] == core].iloc[0]
geomx_roi_positions_core = geomx_roi_positions[
(geomx_roi_positions["x_min_px"] >= geomx_core_position["x1"])
& (geomx_roi_positions["x_max_px"] <= geomx_core_position["x2"])
& (geomx_roi_positions["y_min_px"] >= geomx_core_position["y1"])
& (geomx_roi_positions["y_max_px"] <= geomx_core_position["y2"])
]
print(geomx_roi_positions_core.head())
roi x_cent_um y_cent_um x_cent_px y_cent_px x_min_px x_max_px \
9 2b 10330.6 16493.0 25967.371818 41390.076433 25138 26797
y_min_px y_max_px
9 40405 42375
# Extract ROI segmentation mask
roi = "2b"
geomx_roi_position = geomx_roi_positions_core[
geomx_roi_positions_core["roi"] == roi
].iloc[0]
# shift relative to core
x_shift = geomx_core_position["x1"]
y_shift = geomx_core_position["y1"]
x_min = int(geomx_roi_position["x_min_px"] - x_shift)
x_max = int(geomx_roi_position["x_max_px"] - x_shift)
y_min = int(geomx_roi_position["y_min_px"] - y_shift)
y_max = int(geomx_roi_position["y_max_px"] - y_shift)
codex_seg_roi_warp = codex_seg_core_warp[y_min:y_max, x_min:x_max]
# Define the color and output name of each cell type you want in the GeoMX segment file name
celltype_color = {
"CD8mem": "1f77b4",
"Other": "ff7f0e",
"Tumor": "2ca02c",
"Neutrophil": "d62728",
"Endothelial": "9467bd",
"Treg": "8c564b",
"CD4naive": "e377c2",
"DC": "7f7f7f",
"CD8naive": "bcbd22",
"CD4mem": "17becf",
"M2": "aec7e8",
"M1": "ffbb78",
"Other Tumor": "98df8a",
"Tumor BCL2": "ff9896",
"Tumor Myc": "c5b0d5",
"Tumor BCL6": "c49c94",
"B cell": "f7b6d2",
}
celltype_outname = {
"CD8mem": "CD8mem",
"Other": "Other",
"Tumor": "Tumor",
"Neutrophil": "Neutrophil",
"Endothelial": "Endothelial",
"Treg": "Treg",
"CD4naive": "CD4naive",
"DC": "DC",
"CD8naive": "CD8naive",
"CD4mem": "CD4mem",
"M2": "M2",
"M1": "M1",
"Other Tumor": "TumorOther",
"Tumor BCL2": "TumorBCL2",
"Tumor Myc": "TumorMyc",
"Tumor BCL6": "TumorBCL6",
"B cell": "BCell",
}
# Annotation for the ROI
codex_annotation_core = codex_annotation[codex_annotation["core"] == core]
annotation_dict = codex_annotation_core.set_index("cell_label")["annotation"].to_dict()
codex_annotation_roi = pd.DataFrame(
np.unique(codex_seg_roi_warp), columns=["cell_label"]
)
codex_annotation_roi["annotation"] = codex_annotation_roi["cell_label"].map(
annotation_dict
)
codex_annotation_roi = codex_annotation_roi[codex_annotation_roi["cell_label"] != 0]
codex_annotation_roi["color"] = codex_annotation_roi["annotation"].map(
lambda x: f"#{celltype_color[x]}"
)
print(codex_annotation_roi.head())
cell_label annotation color
1 7319 Endothelial #9467bd
2 7349 CD4mem #17becf
3 7366 Endothelial #9467bd
4 7376 Endothelial #9467bd
5 7377 Endothelial #9467bd
# Celltype mask generation order
celltype_count = codex_annotation_roi["annotation"].value_counts().sort_values()
celltype_order = celltype_count[celltype_count > 20].index.tolist()
# Put "Other" at the end of the list
if "Other" in celltype_order:
celltype_order = [ct for ct in celltype_order if ct != "Other"]
celltype_order.append("Other")
print(f"Extraction order after excluding cells < 20: {celltype_order}")
Extraction order after excluding cells < 20: ['Tumor Myc', 'Other Tumor', 'DC', 'CD8naive', 'Treg', 'Tumor BCL2', 'M2', 'CD4naive', 'M1', 'Tumor BCL6', 'CD8mem', 'Endothelial', 'CD4mem', 'Other']
# Celltype mask generation
for i, celltype in tqdm(
enumerate(celltype_order),
total=len(celltype_order),
desc="Generating celltype masks",
bar_format=TQDM_FORMAT,
):
celltype_cell_labels = codex_annotation_roi[
codex_annotation_roi["annotation"] == celltype
]["cell_label"].values
binary_mask = (
np.isin(codex_seg_roi_warp, celltype_cell_labels).astype(np.uint8) * 255
)
output_dir_roi = output_dir / "geomx_binary_mask" / roi
output_dir_roi.mkdir(parents=True, exist_ok=True)
output_name = (
f"{roi}_{celltype_outname[celltype]}_{i + 1}_{celltype_color[celltype]}.tiff"
)
tifffile.imwrite(output_dir_roi / output_name, binary_mask)
Generating celltype masks: 100%|██████████████████████████████| 14/14 [00:00<00:00, 30.67it/s]
!tree $output_dir
[01;34m/mnt/nfs/storage/wenruiwu_temp/indepth/tutorial/output[00m
├── [01;34mgeomx_binary_mask[00m
│ └── [01;34m2b[00m
│ ├── 2b_CD4mem_13_17becf.tiff
│ ├── 2b_CD4naive_8_e377c2.tiff
│ ├── 2b_CD8mem_11_1f77b4.tiff
│ ├── 2b_CD8naive_4_bcbd22.tiff
│ ├── 2b_DC_3_7f7f7f.tiff
│ ├── 2b_Endothelial_12_9467bd.tiff
│ ├── 2b_M1_9_ffbb78.tiff
│ ├── 2b_M2_7_aec7e8.tiff
│ ├── 2b_Other_14_ff7f0e.tiff
│ ├── 2b_Treg_5_8c564b.tiff
│ ├── 2b_TumorBCL2_6_ff9896.tiff
│ ├── 2b_TumorBCL6_10_c49c94.tiff
│ ├── 2b_TumorMyc_1_c5b0d5.tiff
│ └── 2b_TumorOther_2_98df8a.tiff
└── [01;34mregistration[00m
└── [01;34m2.2[00m
├── affine_matrix.txt
├── inverse_affine_matrix.txt
├── sift_matches.png
├── warped_codex_dapi.tiff
└── warped_codex_segmentation_mask.tiff
4 directories, 19 files
5. Visualization
# GeoMx ROI DAPI
geomx_dapi_roi = geomx_dapi_core[y_min:y_max, x_min:x_max]
# GeoMx ROI DAPI with warped CODEX segmentation boundary
rgb_dapi_roi = np.stack([uint16_to_uint8(geomx_dapi_roi)] * 3, axis=-1)
boundaries = find_boundaries(codex_seg_roi_warp, mode="inner", connectivity=1)
rgb_dapi_roi[boundaries] = (0, 255, 255)
# GeoMx ROI with warped CODEX annotation
rgb_annotation_roi, _ = segmentation_mask_to_phenotype_map(
codex_seg_roi_warp, codex_annotation_roi
)

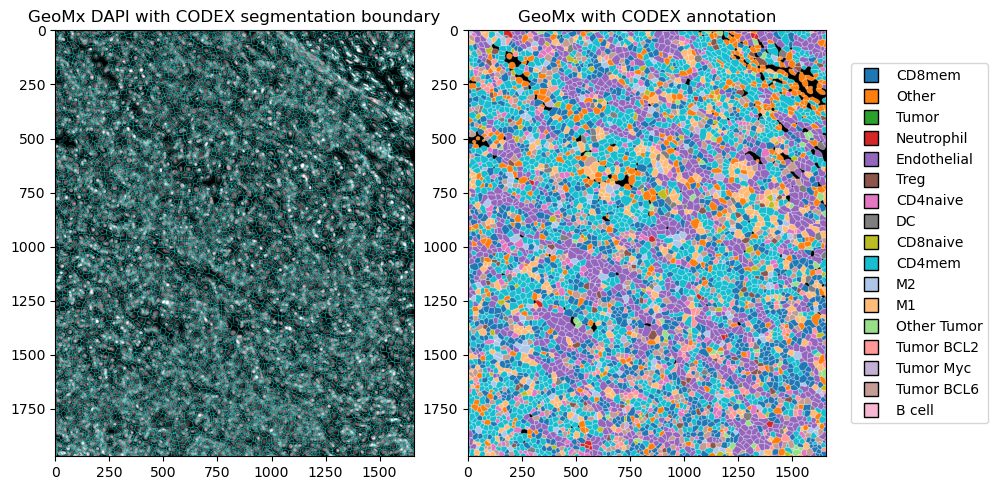

# Visualize ROI
fig, axes = plt.subplots(1, 2, figsize=(10, 5))
axes[0].imshow(rgb_dapi_roi)
axes[0].set_title("GeoMx DAPI with CODEX segmentation boundary")
axes[1].imshow(rgb_annotation_roi)
ax_plot_legend({k: f"#{v}" for k, v in celltype_color.items()})
axes[1].set_title("GeoMx with CODEX annotation")
fig.tight_layout()

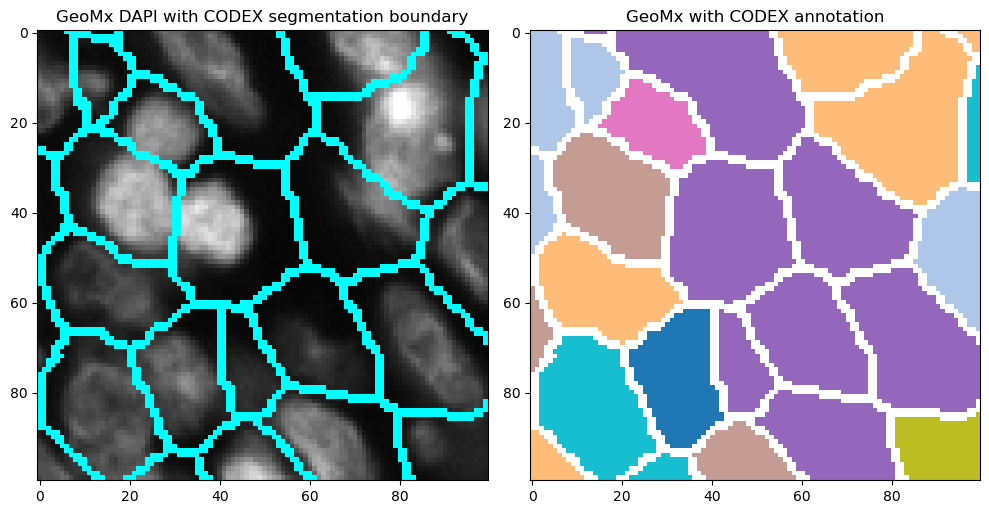

# Visualize ROI (zoomed-in)
x_0, y_0 = 0, 0
step = 100
fig, axes = plt.subplots(1, 2, figsize=(10, 5))
axes[0].imshow(rgb_dapi_roi[y_0 : y_0 + step, x_0 : x_0 + step])
axes[0].set_title("GeoMx DAPI with CODEX segmentation boundary")
axes[1].imshow(rgb_annotation_roi[y_0 : y_0 + step, x_0 : x_0 + step])
axes[1].set_title("GeoMx with CODEX annotation")
fig.tight_layout();
